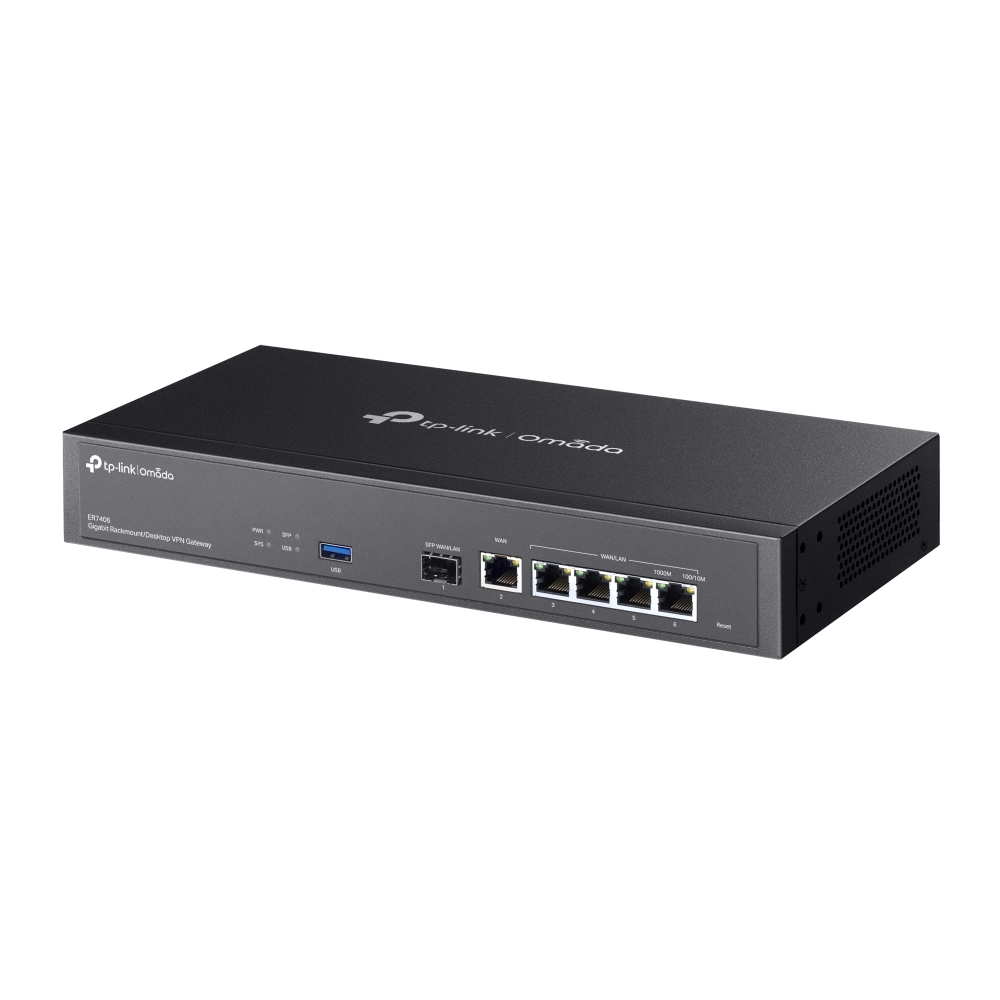

| TP-LINK ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway
TP-LINK ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway
เพิ่มเมื่อ: 2025-01-17 13:17:58.0
แก้ไขล่าสุด: 2025-01-17 13:27:17.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comVPN Router TP-LINK ER7406 Omada Gigabit VPN Router, 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports (Limited Lifetime Warranty)
TP-LINK ER7406
VPN Router ER7406 Omada Gigabit VPN Router, 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports
- 1× Gigabit SFP WAN/LAN port
- 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
- Rackmount/Desktop
Standards and Protocols :
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface :
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity : Fanless
Button : Reset Button
Power Supply : 100-240VAC, 50/60Hz
Flash : 128 MB NAND
DRAM : 512 MB DDR4
LED : PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H ) : 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protection : 4 kV surge protection
Enclosure : Steel
Mounting :
• Desktop
• Rackmountable
Max Power Consumption :
• 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)
WAN Connection Type :
• Static IP
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP
MAC Clone : Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP :
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 : StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN : 802.1Q VLAN
IPTV : IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
System Requirements :
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Package Contents :
• ER7406
• Power Cord
• Quick Installation Guide
• Rackmount Kit
